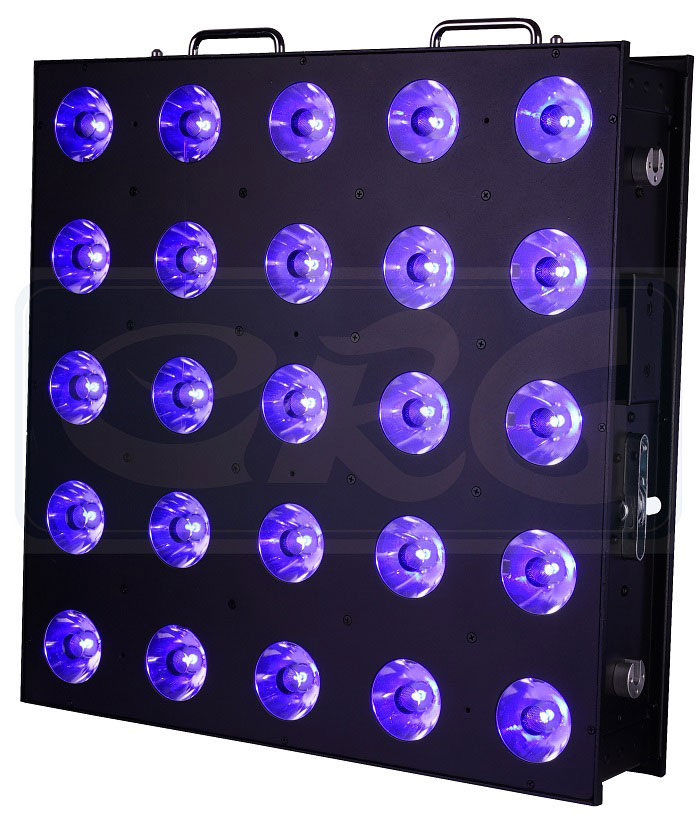

E-S37541 Four matrix light
Entertainment Lighting
PRODUCT DETAILS
Uses 25 15W RGBW Quad lamp beads as the light source, the light beam angle 40, each light source can be controlled individually, in combinations of three-dimensional space projected dynamic graphics, as well as a powerful addition to DMX control RDM, Art-Net , Kling-Net and other network control technology, can produce extremely bright lighting graphical effects.
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
13 kinds of built-in programs to choose from 16 kinds of graphics;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control Channel: nine kinds of channel mode (4/5/6/7/12/25/100/125/150);
Protocol: standard DMX512 protocol, RDM protocol, Art-net, Kling-net protocol;
Data Connection: Three core / pentandra XLR input / output, RJ45 network port input / output;
Display: 1602A LCD display operation panel;
software
Optics
LED Type: Four single 15W RGBW lamp beads;
Light beam angle: 40;
Average life expectancy: ≥50,000H;
Colour
Uniform RGBW color mixing system and rainbow effect;
Create unlimited dynamic, unlimited color changes;
effect
13 kinds of built-in programs to choose from 16 kinds of graphics;
Fast electronic strobe: 1 ~ 2 5 Hz;
Dimming mode: two kinds;
Dimming curve: four kinds;
Control and Programming
Control Channel: nine kinds of channel mode (4/5/6/7/12/25/100/125/150);
Protocol: standard DMX512 protocol, RDM protocol, Art-net, Kling-net protocol;
Data Connection: Three core / pentandra XLR input / output, RJ45 network port input / output;
Display: 1602A LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240,50 / 60Hz;
Rated power: 410W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 532mm * 143mm * 562mm;
Net weight: 17.5 kgs;
Quiet fan, intelligent speed;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240,50 / 60Hz;
Rated power: 410W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 532mm * 143mm * 562mm;
Net weight: 17.5 kgs;
