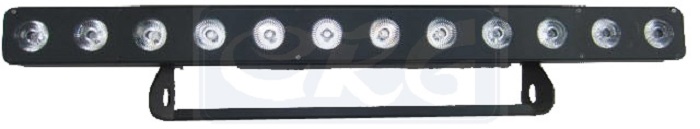

E-B12031 Triple color temperature strip lights
Entertainment Lighting
PRODUCT DETAILS
Uses 12 10W triple white LED light source, the light beam angle of 250, each light source can be individually controlled, multiple color temperature can be adjusted segment results, there is a strong addition to DMX control of RDM, Art-Net, Kling-Net and other grid control technology can produce effects such as tungsten light very bright lighting graphical effects.
Optics
LED Type: 10W single triple white LED;
Light beam angle: 250 (optional 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform color mixing system can adjust the halogen effect;
effect
15 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming Mode: Five;
Control and Programming
Control channel: twelve kinds of channel mode (1/2/3/4/8/10/13/14/18/36/39/43);
Protocol: standard DMX512 protocol, RDM protocol, Art-Net.Kling-Net protocol;
Data Connection: Three core / pentandra XLR input / output, AJ45 network port input / output;
Display: 0802LCD display operation panel;
software
Optics
LED Type: 10W single triple white LED;
Light beam angle: 250 (optional 45 ° optical lens);
Average life expectancy: ≥50,000H;
Colour
Uniform color mixing system can adjust the halogen effect;
effect
15 kinds of built-in programs to choose from;
Fast electronic strobe: 1 ~ 25 Hz;
Dimming Mode: Five;
Control and Programming
Control channel: twelve kinds of channel mode (1/2/3/4/8/10/13/14/18/36/39/43);
Protocol: standard DMX512 protocol, RDM protocol, Art-Net.Kling-Net protocol;
Data Connection: Three core / pentandra XLR input / output, AJ45 network port input / output;
Display: 0802LCD display operation panel;
software
Software upgrade: update software via DMX signal easily and quickly upgrade;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 120W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 900mm * 207mm * 155mm;
NW: 6kgs;
Intelligent temperature protection to ensure the LED life;
Light structure
Aluminum structure;
Power and power
Input voltage: AC 100V ~ 240V, 50 / 60Hz;
Rated power: 120W;
other
Degree of protection: IP 20;
Working environment: -15 ℃ ~ 45 ℃;
size and weight
Lamp Size: 900mm * 207mm * 155mm;
NW: 6kgs;
